Monoblock directional valve
KM50
Compact by design. Capable by nature.
The Komtes KM50 is a monoblock hydraulic directional control valve manufactured in Konya, Türkiye. A compact monoblock platform with one to seven independently operated spools. A 37 mm spool pitch and flexible port options keep your hydraulic layout focused.
SIMPLIFIED PRESENTATION MODEL · NOT FOR MANUFACTURING
- Construction
- Monoblock
- Spool pitch
- 37 mm
- Overall width
- 173 mm
- Work ports
- G 3/8 or G 1/2
Designed with purpose
A smaller footprint. The same attention to control.
37 mm spool pitch
A closely spaced layout, from a single function to a seven-spool assembly.
Two work-port options
G 3/8 and G 1/2 connections are listed for the A/B work ports and P inlet.
A documented fit
Individual dimensioned drawings cover all seven spool counts, from 99 to 321 mm overall width.
Technical specifications
The details that
make the difference.

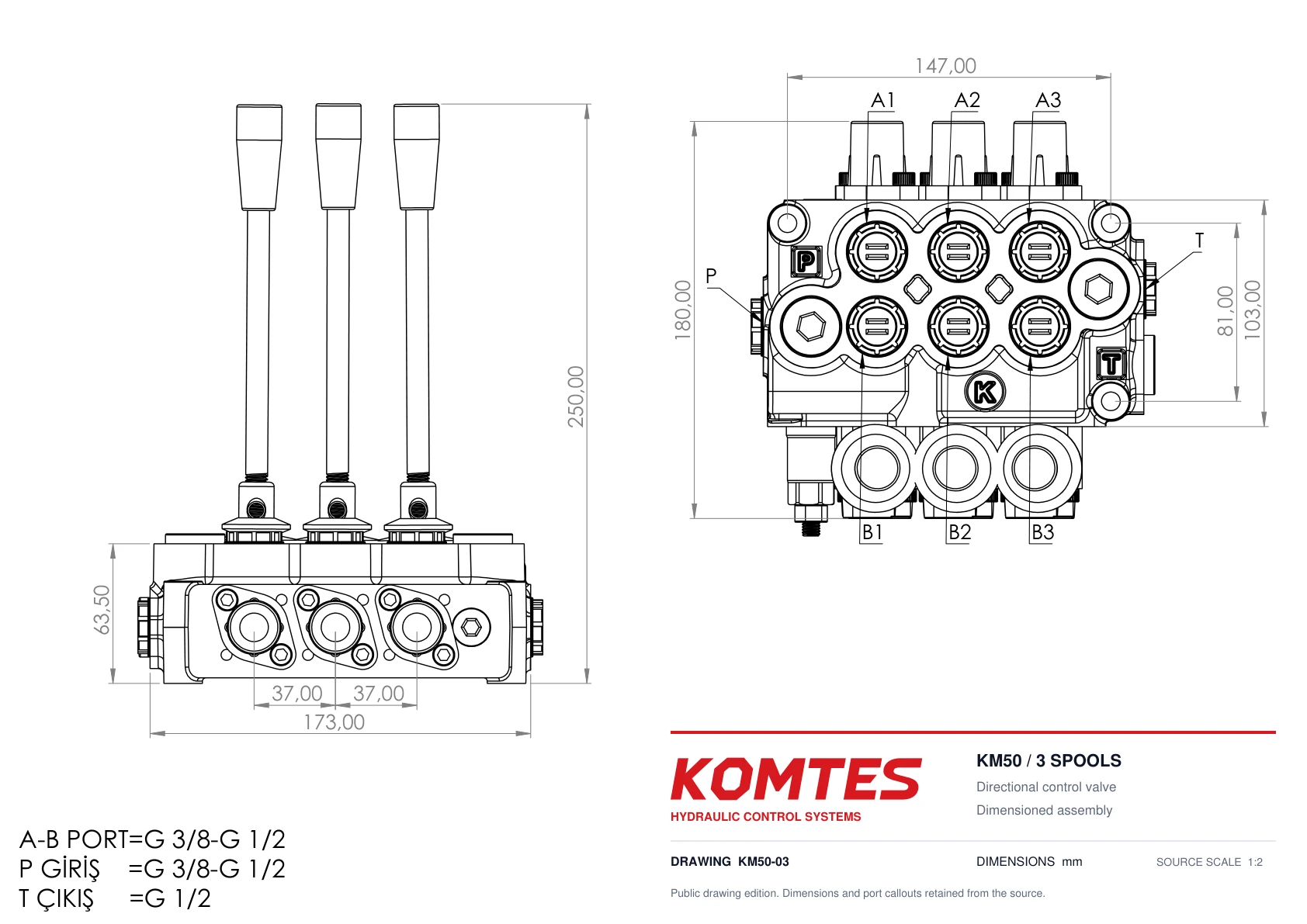

Showing KM50 with 3 spools. Dimensions and connections follow the source drawing.
The four-spool source drawing lists G 3/8–G 1/2 at T; the other six drawings list G 1/2. Confirm the return-port option for KM50-4.
| Construction | Monoblock |
|---|---|
| Number of spools | 3 |
| Overall width | 173 mm |
| Overall height, with levers | 250 mm |
| Depth, as dimensioned | 180 mm |
| Body height, as dimensioned | 63.5 mm |
| Spool / section pitch | 37 mm |
| A/B · Work ports | G 3/8 or G 1/2 |
| P · Pressure inlet | G 3/8 or G 1/2 |
| T · Tank return | G 1/2 |
Application requirements are detailed in the technical documentation. Selection dimensions are separate from the deliberately simplified 3D presentation. For help defining your specification, read the hydraulic valve selection guide.
Dimensioned, documented.
Take a closer look.
Open drawing PDF Public drawing edition with a refreshed Komtes title block. Source dimensions and port callouts are unchanged.
