Sectional directional valve
Sectional series
Built around your system.
A sectional architecture with separate inlet, work and outlet elements. Seven documented assembly sizes share a 45 mm section pitch and G 3/4 connections.
SIMPLIFIED PRESENTATION MODEL · NOT FOR MANUFACTURING
- Construction
- Sectional
- Spool pitch
- 45 mm
- Overall width
- 237 mm
- Work ports
- G 3/4
Designed with purpose
Individual sections. One coordinated system.
Sectional construction
Separate P inlet, intermediate work sections and T outlet elements are present in the supplied CAD library.
G 3/4 connections
A/B, P and T ports share the connection size shown on each of the seven source drawings.
45 mm section pitch
The documented assemblies span 147 to 417 mm overall width, with a 310 mm overall height.
Technical specifications
The details that
make the difference.
Showing Sectional series with 3 spools. Dimensions and connections follow the source drawing.
The supplied drawings identify this family as KM100; CAD folders and photographs use 110 LT. The family name and rated flow require confirmation.
| Construction | Sectional |
|---|---|
| Number of spools | 3 |
| Overall width | 237 mm |
| Overall height, with levers | 310 mm |
| Depth, as dimensioned | 257 mm |
| Body height, as dimensioned | 90 mm |
| Spool / section pitch | 45 mm |
| A/B · Work ports | G 3/4 |
| P · Pressure inlet | G 3/4 |
| T · Tank return | G 3/4 |
Performance reference profiles are available in the technical documentation. Selection dimensions are separate from the deliberately simplified 3D presentation.

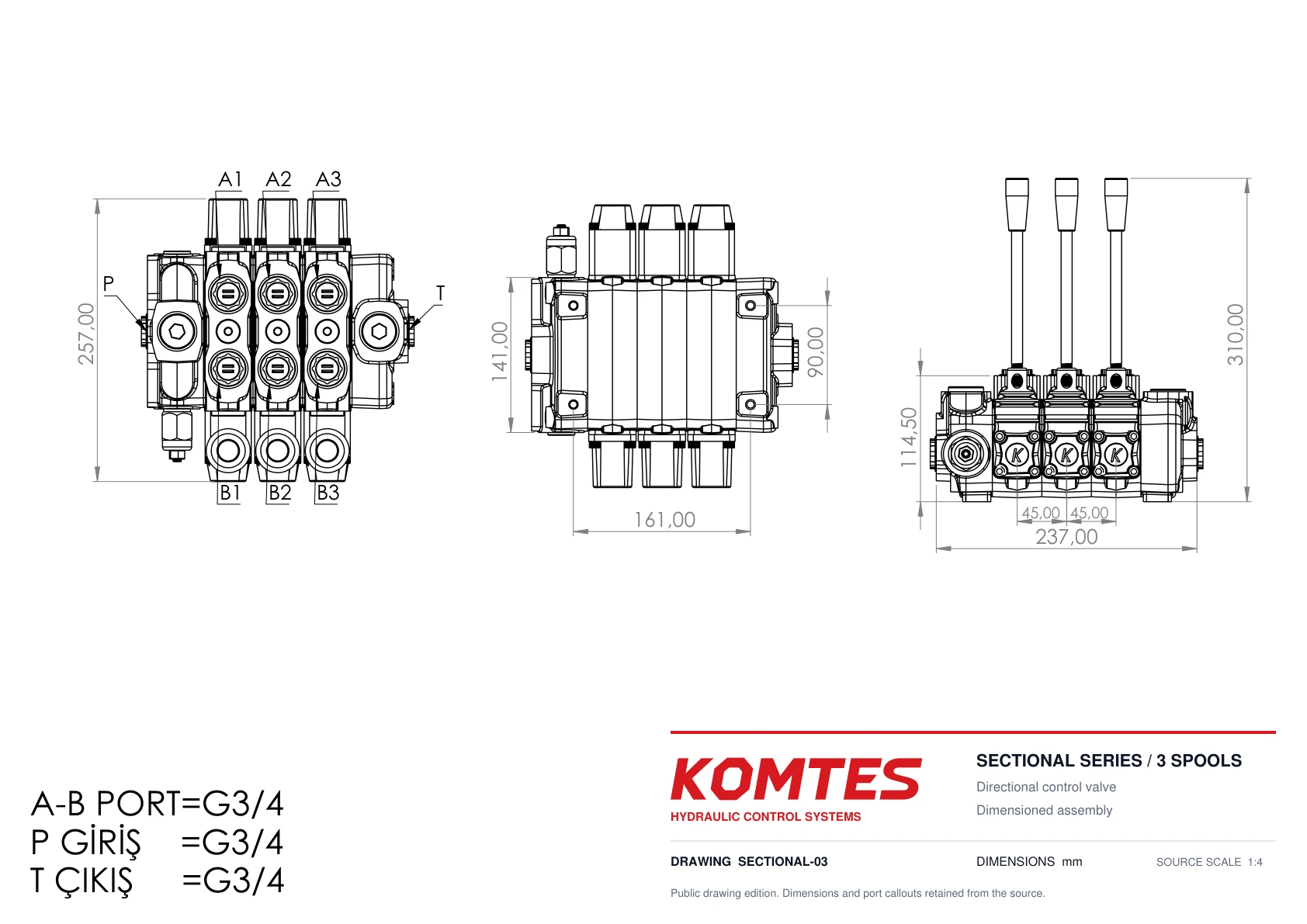

Dimensioned, documented.
Take a closer look.
Open drawing PDF Public drawing edition with a refreshed Komtes title block. Source dimensions and port callouts are unchanged.
