The product family
Control begins
with the right valve.
Three platforms. One considered approach to hydraulic control. Explore the assembly that fits your system.
3 PLATFORMS
Monoblock01

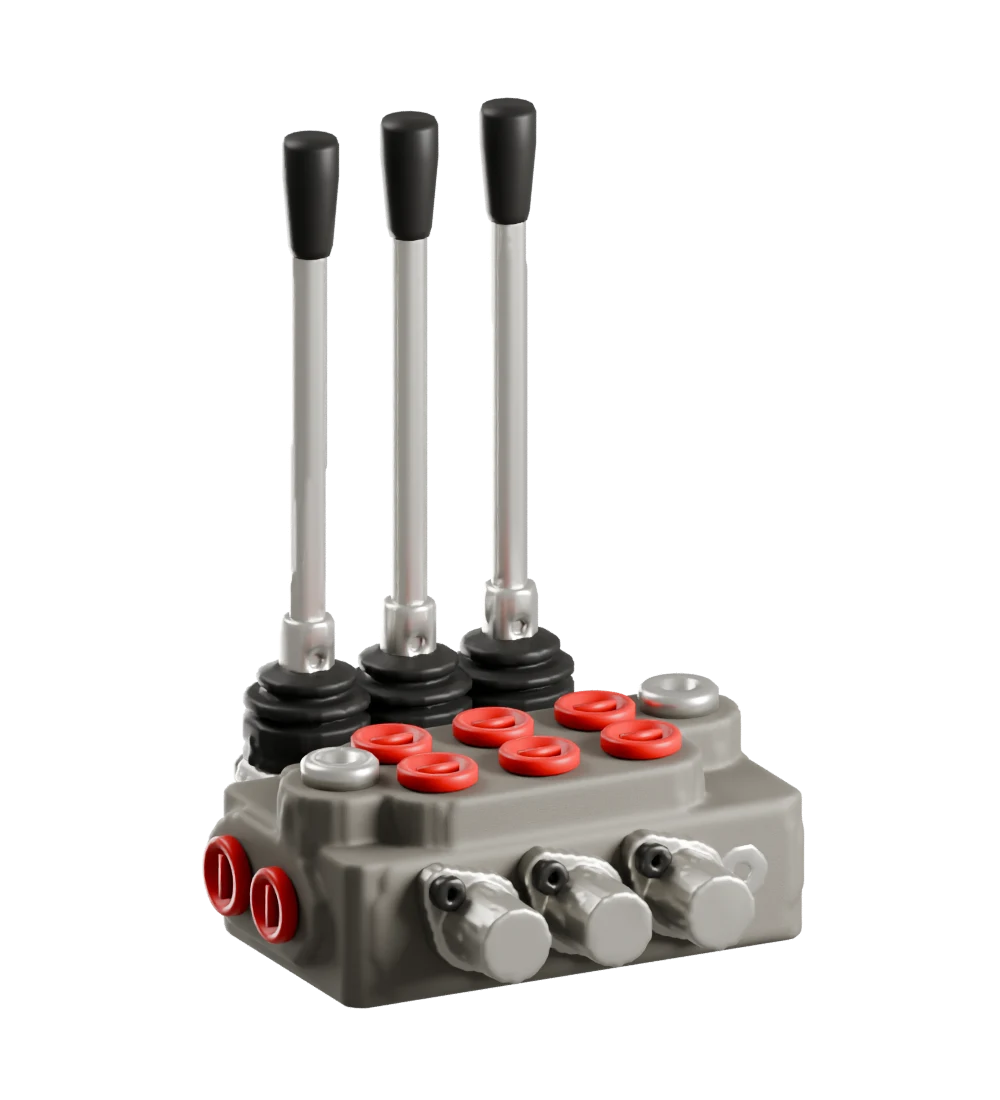

KM50
1–7 spools37 mm pitchG 3/8 or G 1/2
Monoblock02
KM80
1–7 spools45 mm pitchG 1/2 or G 3/4
Sectional03

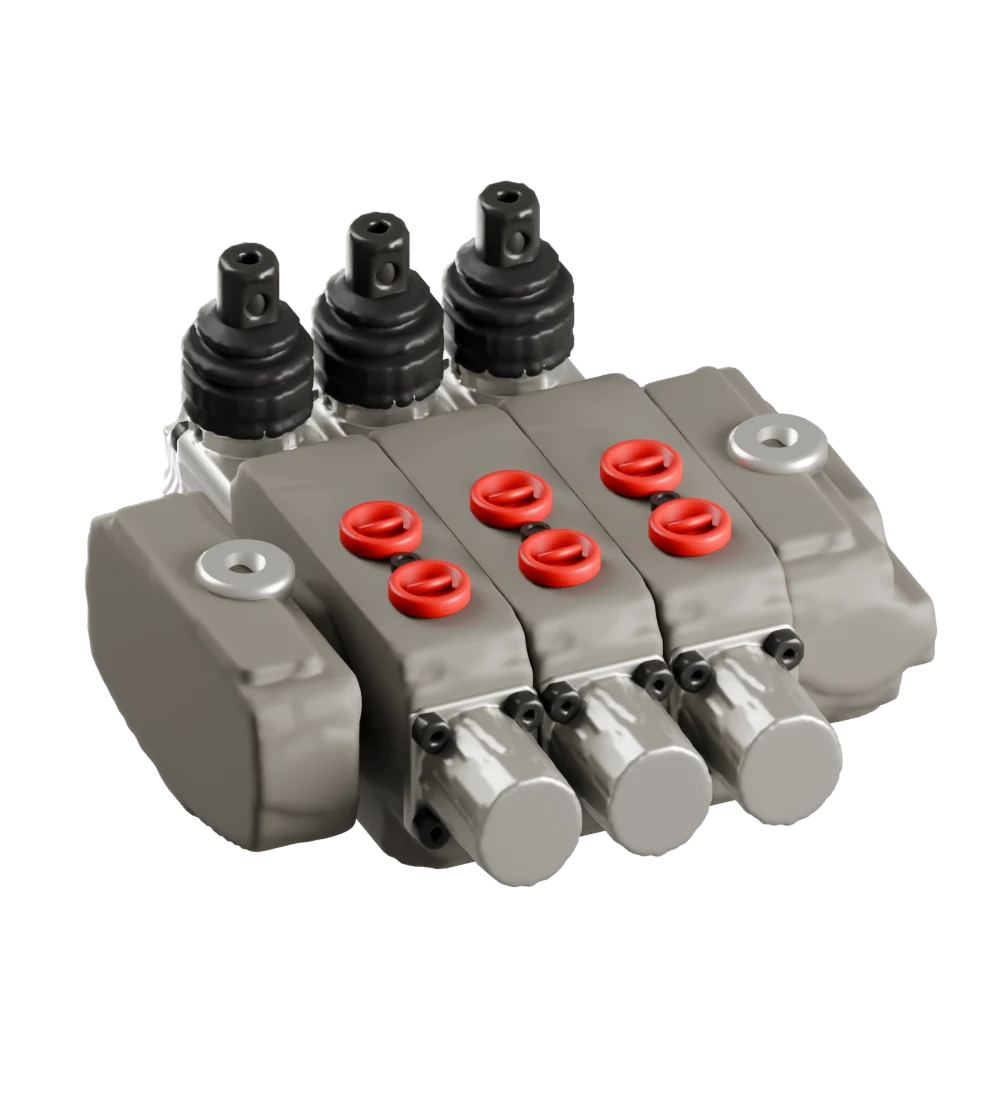

Sectional series
1–7 spools45 mm pitchG 3/4
Side by side
Find your fit.
| Specification | KM50 | KM80 | Sectional series |
|---|---|---|---|
| Construction | Monoblock | Monoblock | Sectional |
| Spools / sections | 1–7 | 1–7 | 1–7 |
| Spool pitch | 37 mm | 45 mm | 45 mm |
| A/B work ports | G 3/8 or G 1/2 | G 1/2 or G 3/4 | G 3/4 |
| P inlet | G 3/8 or G 1/2 | G 1/2 or G 3/4 | G 3/4 |
| T return | G 1/2¹ | G 3/4 | G 3/4 |
| Overall width, 1–7 spools | 99–321 mm | 130–400 mm | 147–417 mm |
| Overall height, with levers | 250 mm | 285 mm | 310 mm |
| Technical documentation | View documents | View documents | View documents |
Dimensions and connections transcribed from the supplied Komtes drawings. ¹ KM50-4 lists G 3/8–G 1/2 at T. See the configuration drawing and data-source notes.
